Description

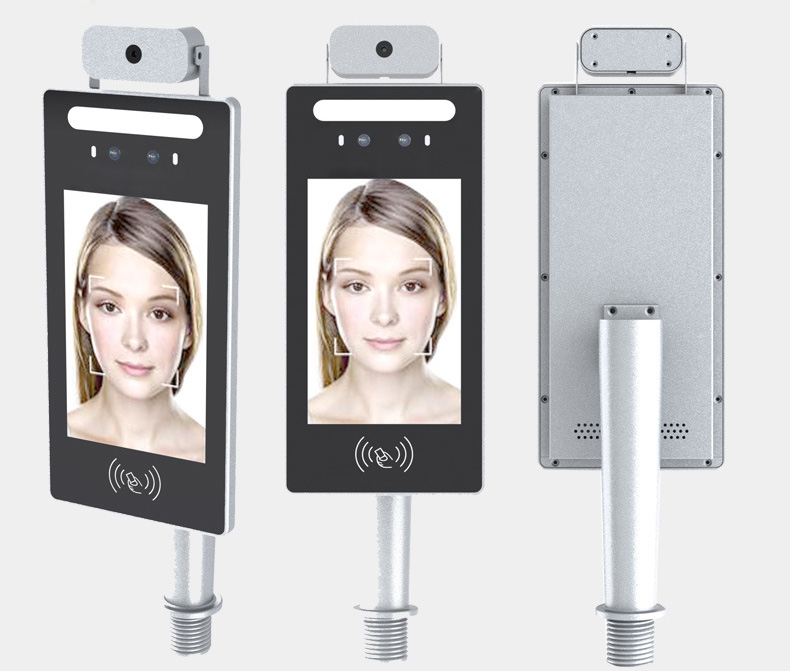

Face recognition infrared temperature tester

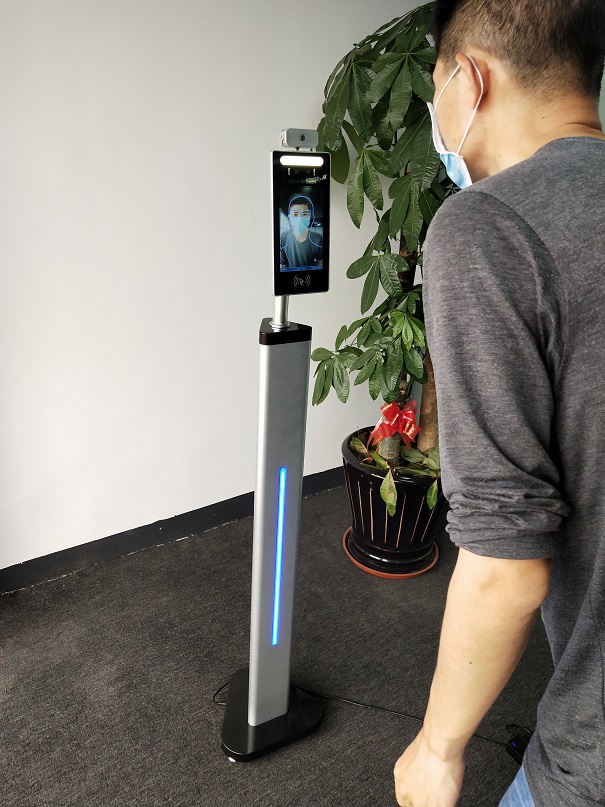

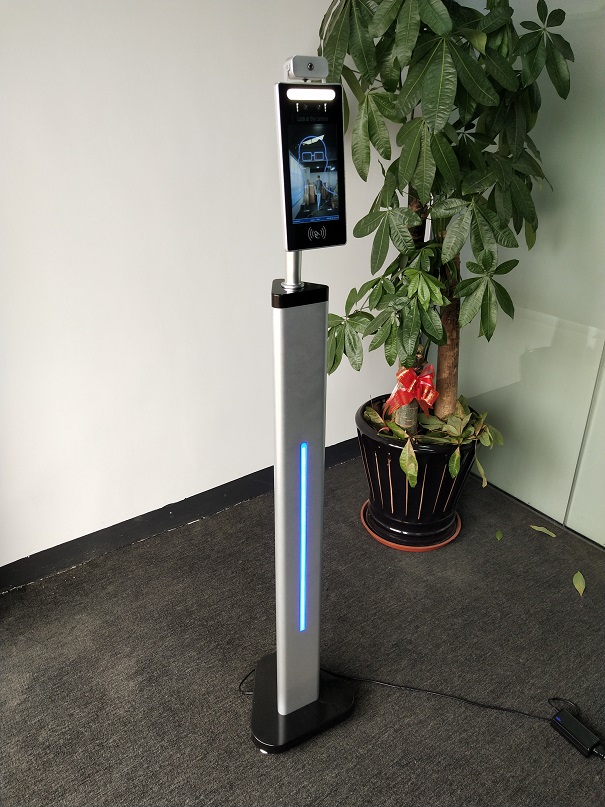

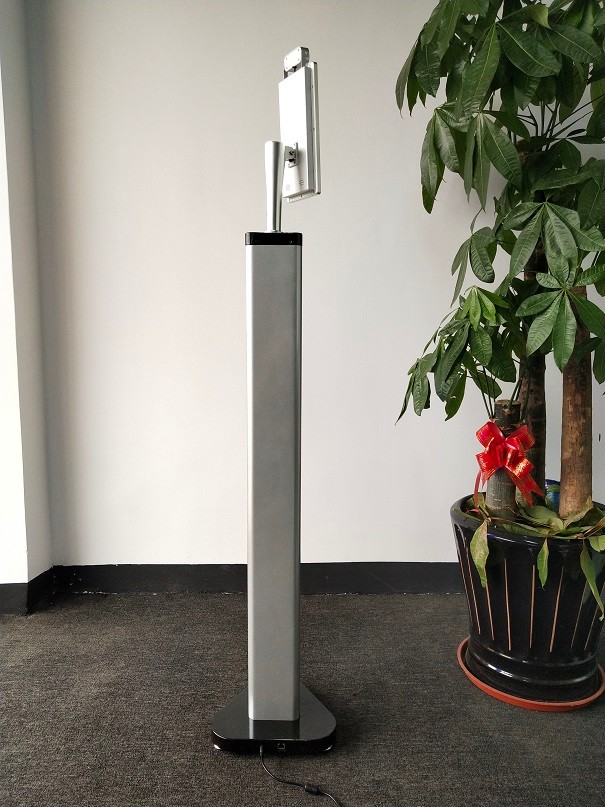

Products can be equipped with standing brackets
Application scenario
Protocol interface：
Product Specifications:
| Model: | DTYS07 |
| System | |
| Main processor | Six cores/ Cortex-A72+4Cortex-A53 |
| operating system | Android 7.1 |
| RAM | 2G |
| ROM | 8GB |
| Display | |
| size | 7 inch IPS HD screen |
| Resolution | 800*1280 |
| camera | |
| Sensor | 1/5 GC2145 |
| Resolution | NIR 600*800 15fps |
| Lens | 2.4mm |
|
Face library capacity
|
Supports up to 30,000 sheets |
| Recognize face angle | (Daytime) vertical viewing angle 58-60, horizontal viewing angle 35; (living body) vertical viewing angle 48-50, horizontal viewing angle 36 |
| Fault tolerance | Ordinary glasses and short sea surface retention time have no effect on recognition |
| expression | Under normal circumstances, slight expressions do not affect recognition |
| reaction speed | About 200ms |
| Facial exposure | stand by |
| Local storage | Support 25,000 records |
| Recognition area | Full screen recognition |
| Upload method | TCP, HTTP, MQTT |
|
Network features
|
|
|
Network protocol
|
IPv4, TCP / IP, HTTP |
|
Interface Protocol
|
no |
|
Safe mode
|
Authentication username and password |
|
Alarm linkage mode
|
Voice broadcast, abnormal upload |
|
System Upgrade
|
Support remote upgrade |
|
Other
|
/ |
|
Hardware accessories
|
|
|
Auxiliary light
|
fill light, white light fill light
|
|
|
|
|
speaker
|
Support voice broadcast for successful recognition results |
|
Network module
|
no |
|

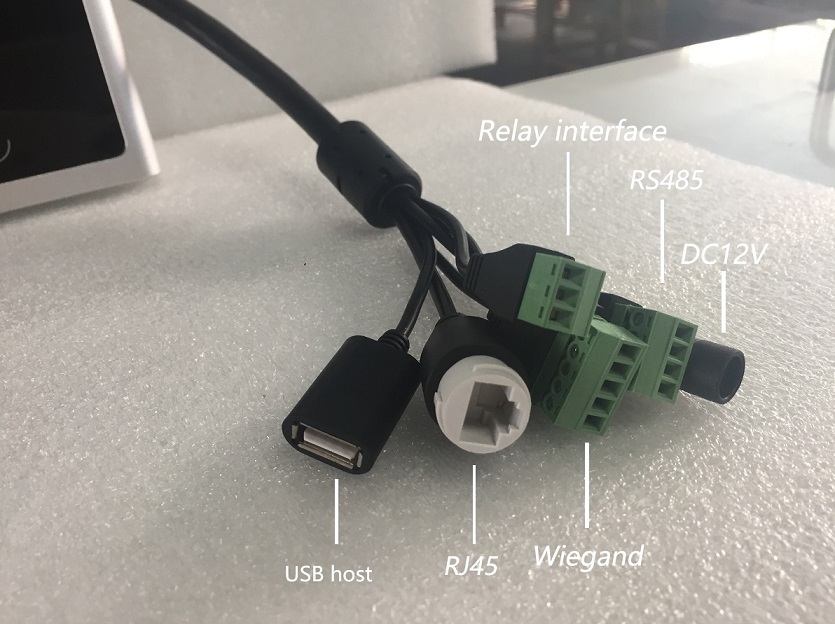

Hardware interface
|
|
|
Network Interface
|
RJ45 10M / 100M Network Adaptation |
|
Alarm input
|
no |
|
Alarm Output
|
no |
|
RS485
|
stand by |
|
TF card slot
|
no |
|
HDMI
|
no |
|
Wiegand interface
|
Support Wiegand 26, 34, 66 protocols |
|
Hard reply button
|
stand by |
| Tamper switch | no |
|
Conventional
|
|
| shell | Metal body and bracket, plastic panel, IP66 |
